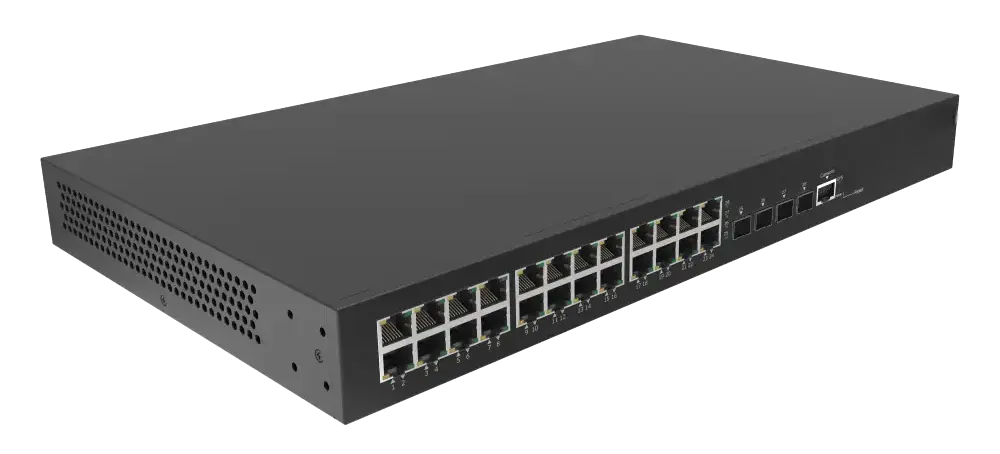

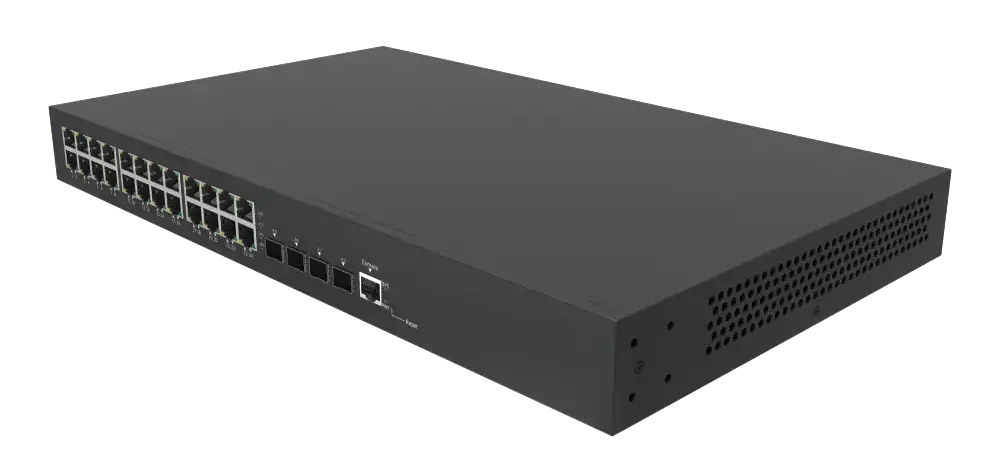

4NET ESW-4XS24GT Managed L2+ Switch 24×GE RJ45 + 4×10G SFP+, VLAN, QoS, IPv4/IPv6
4NET ESW-4XS24GT is a managed Layer 2+ switch with full Gigabit access and scalability up to 10G. It features 24 ports 10/100/1000Base-T RJ45 for connecting user/office devices and 4 uplink SFP+ ports 1G/2.5G/10G for high-speed backbone connections. Supports IPv4/IPv6 static routing and DHCP server, providing comprehensive QoS, flexible management, and advanced security for SMB, enterprise, and ISP networks (VoIP, video, multicast).
Key Features
- Ports: 24×10/100/1000M RJ45 + 4×1G/2.5G/10G SFP+ (uplink)
- Layer 3: IPv4/IPv6 static routing, DHCP server
- Link aggregation: GE / 2.5GE / 10GE, static and dynamic (LACP)
- VLAN: access / trunk / hybrid, VLAN classification (MAC/IP/protocol-based)
- QinQ: port-based / VLAN-based / flow-based
- STP: STP / RSTP / MSTP, G.8032 ERPS (ring, sub-ring)
- Multicast: IGMP snooping
- QoS: classification, remarking, SP/WRR, ingress/egress rate limiting, policy-based QoS
- Security: 802.1X, port/MAC authentication, RADIUS, port security, IP source guard, IP/Port/MAC binding, ARP-check and ARP filtering, port isolation
- Management: LLDP, SNMP v1/v2c/v3, Web (HTTP/HTTPS), Syslog, RMON, NTP, temperature monitoring, Ping/Tracert, DDM
- Upgrade/backup: Web GUI, FTP, TFTP
Technical Specifications
| Model | ESW-4XS24GT | ||
|---|---|---|---|
| Interfaces | Fiber ports | Copper RJ45 ports | |
| 4 | 24 | ||
| Ethernet |
24×10/100/1000Base-T RJ45
4×1G/2.5G/10GBase-X SFP+
|
||
| Management port | 1×RJ45 Console (115200, 8, N, 1) | ||
| Standards |
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-X), IEEE 802.3x (Flow Control/Back Pressure)
IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1Q (VLAN)
ITU-T G.8032 (ERPS), IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP)
|
||
| LED Indicators | |||
| PWR (power) | Off: no power or failure | On: normal operation | |
| SYS (system status) | Blinking: initialization | On: normal operation | |
| 1–24 (RJ45, green) | Off: link down | ||
| On: link up | |||
| Blinking: TX/RX | |||
| 1–24 (speed, yellow) | Off: 10/100M | ||
| On: 1000M | |||
| 25–28 (SFP+, green) | Off: link down | ||
| On: link up | |||
| Blinking: TX/RX | |||
| Power | |||
| Input voltage | AC 100–240V | ||
| Power consumption | full load ≤ 25W | ||
| Over-current protection | Supported | ||
| Switching performance | |||
| Switching capacity | 128Gbps | ||
| Packet forwarding rate | 190Mpps | ||
| MAC table | 16K | ||
| VLAN | 4K | ||
| Buffer | 12Mbit | ||
| Forwarding delay | < 5us | ||
| Jumbo Frame | up to 10Kbytes | ||
| MDX/MIDX | Supported | ||
| Watchdog | Supported | ||
| Mechanical | |||
| Installation | Desktop; rack-mount | ||
| Dimensions (W×D×H) | 440×245×44 mm | ||
| Weight | 3.37 kg | ||
| Operating conditions | |||
| Operating temperature | 0℃ … +50℃ | ||
| Storage/transport temperature | -10℃ … +70℃ | ||
| Humidity |
Operating: 10%–90% RH
Storage: 5%–95% RH
|
||
| Certification | CCC / CE / UKCA / RoHS / REACH / FCC | ||
| MTBF | > 100,000 hours | ||
