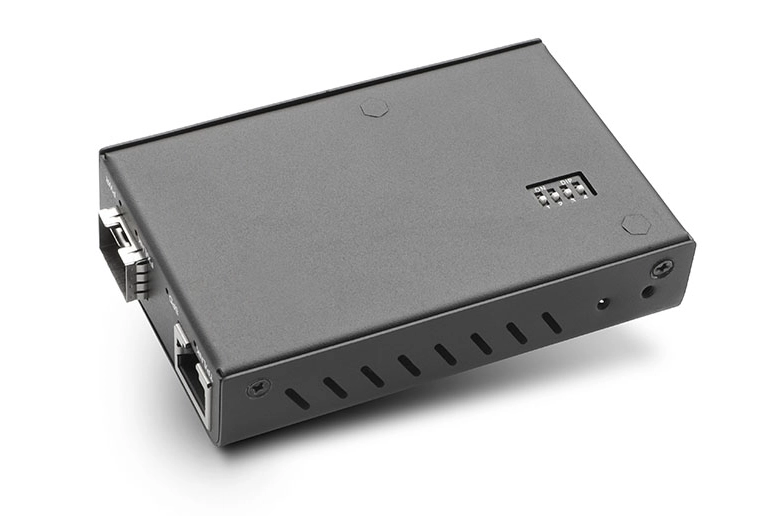

10G mini SFP+ media converter > 10/5/2.5/1G/100M (Unmanaged) MC10Gm-SFP+

This is a high-performance 10G photoelectric converter that uses optical-to-electrical conversion for balanced amplification of optical signals, clock recovery, and optical regeneration. The device utilizes WDM technology (DWDM/CWDM), enabling multi-channel optical signal transmission over long distances through a single fiber.

The 10G mini Ethernet converter has been developed for big data networks and high-speed digital broadband networks. It is mainly used for upgrading and expanding metropolitan fiber-optic networks, as well as for transmitting data from high-capacity servers. The product delivers high-quality, reliable, and high-performance networking solutions at a competitive cost, providing sufficient bandwidth and stable operation.

Features

• One 10 Gigabit optical port and one adaptive 10 Gigabit electrical port
• The copper port supports 1000Base-T, 2.5/5/10GBase-T with auto-negotiation
• Supports IEEE 802.3x full-duplex flow control
• Operating wavelengths: 850 nm, 1310 nm, 1550 nm (optional)
• Supports multiple fiber transmission modes: multimode dual fiber, single-mode dual fiber, and single-mode single fiber
• LFP (Link Fault Pass-Through) function via DIP switch
• ALS function via DIP switch (automatic laser shutdown)
• DIP switch for selecting cut-through mode and store-and-forward mode

Characteristics

• The copper port supports automatic MDI/MDI-X (straight-through/crossover)
• Supports IEEE 802.3x full-duplex flow control
• Supports half-duplex flow control (backpressure)
• Optical wavelengths: 850 nm, 1310 nm, 1550 nm (optional)
• Operating temperature range: -20 to 60 ℃
• DIP switch configuration support
• Low power consumption, low heat generation, and stable long-term operation

Technical Specifications
Standards:

• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3ae
• IEEE 802.3ak

Electrical Port Specifications:

• Interface type: RJ-45
• Speed: 100/1000Base-T, 2.5/5/10GBase-T (auto)
• Cable type: UTP Cat6e or higher
• Transmission distance: 0–100 m

Optical Port Specifications:

• Interface type: SFP+
• Speed: 10 Gbps
• Multimode fiber: 50/125 µm
• Single-mode fiber: 9/125 µm
• Transmission distance: 300 m ~ 80 km

Indicators:

• TP/LINK
• SPD
• FX/LNK
• PWR

Power Requirements:

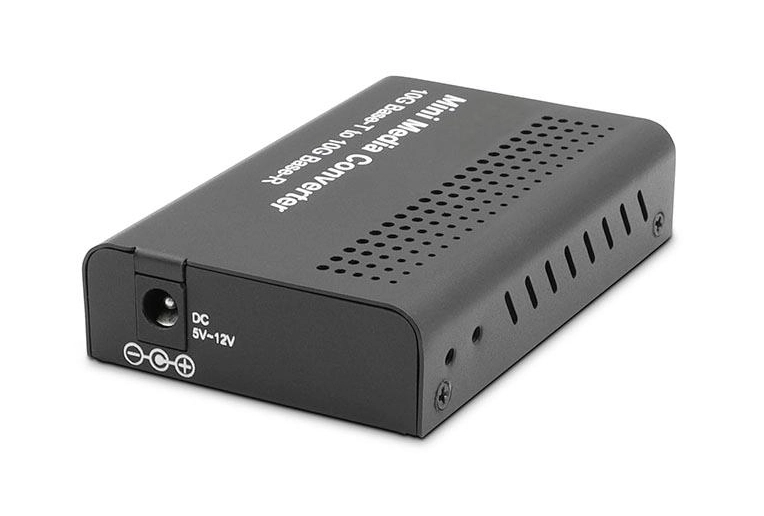

• Input voltage: DC 12V

Physical Characteristics:

• Housing: metal

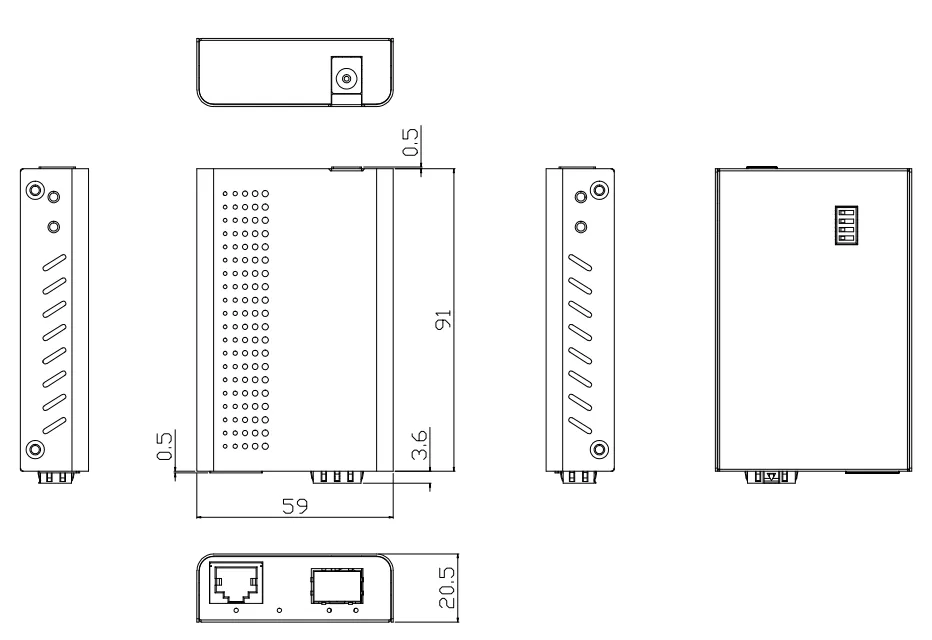

• Dimensions: 91 mm × 59 mm × 20.5 mm
• Installation: desktop

Environmental Conditions:

• Operating temperature: -20 ~ 60 °C (-4 ~ 140 °F)
• Storage temperature: -20 ~ 70 °C (-4 ~ 158 °F)
• Relative humidity: 5 ~ 90% (non-condensing)

MTBF:

• Time: 500,000 hours
