1G медиаконвертер WDM SC > 1000Base-TX (Unmanaged) MCGE
Gigabit Single Fiber (WDM) Media Converters of the MCGE-T/R series are intelligent, adaptive, and high-speed Ethernet devices designed for data transmission between twisted-pair copper 10/100/1000Base-T and optical fiber 1000Base-SX/LX over a single fiber. The use of WDM technology significantly reduces cabling infrastructure costs and extends transmission distance up to 120 km.
The MCGE-T/R series is a cost-effective solution for building backbone, distribution, and remote communication links without upgrading the existing copper network.
Key Advantages of the MCGE-T/R Series
- Single Fiber transmission (WDM) – reduces optical infrastructure costs.
- Up to 120 km distance – supports single-mode fiber for long-distance links.
- Auto speed negotiation – 10/100/1000 Mbps without manual configuration.
- IEEE standards support – 802.3, 802.3u, 802.3ab, 802.3z.
- Full / Half Duplex with IEEE 802.3x flow control.
- Auto MDI/MDI-X detection – no crossover cables required.
- Built-in buffer memory up to 2 MB – stable performance under peak loads.
- High memory bandwidth – up to 1.4 Gbps.
- Jumbo Frames support – up to 1600 bytes.
- Optional LFP function (Link Fault Pass-Through) via DIP switch.
- Hot-pluggable and wall-mountable.
- Compatible with 2U 19” rack chassis (up to 14 standalone units or 16 card modules).

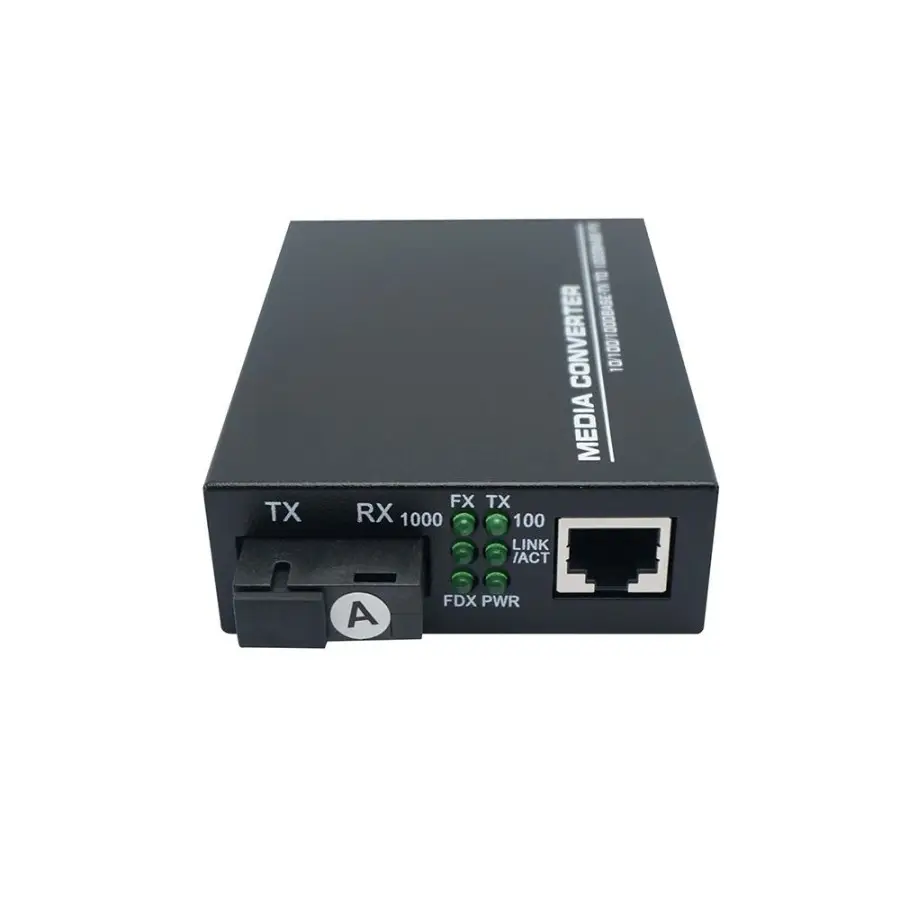

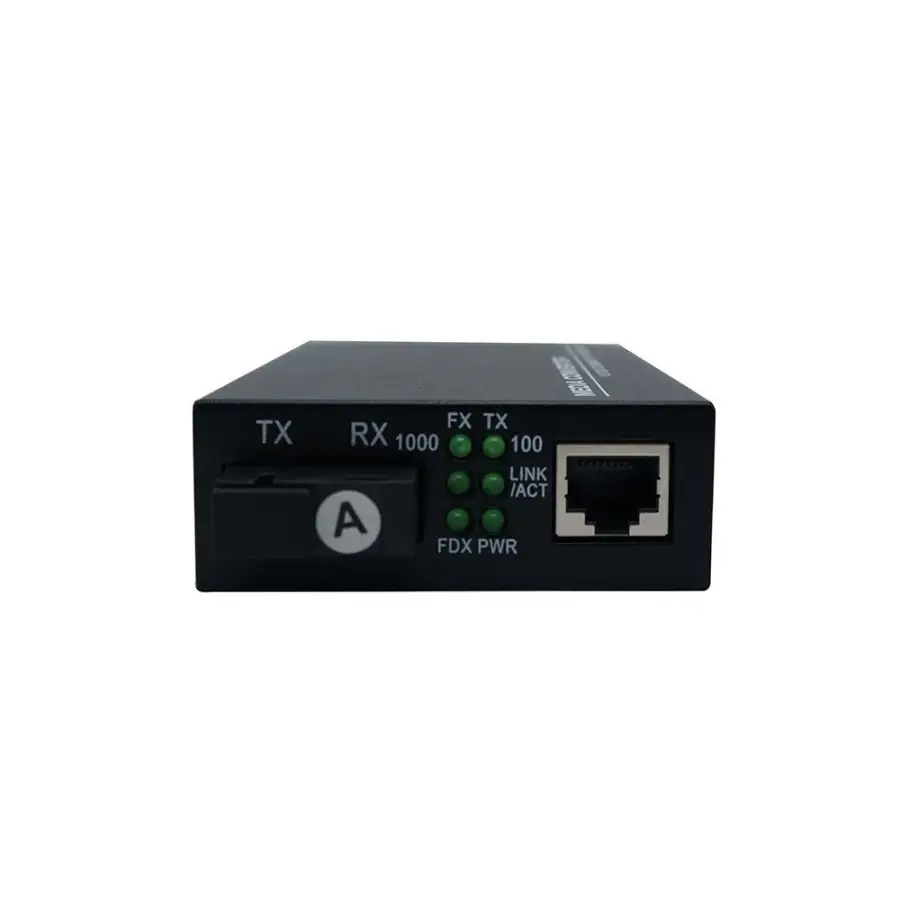

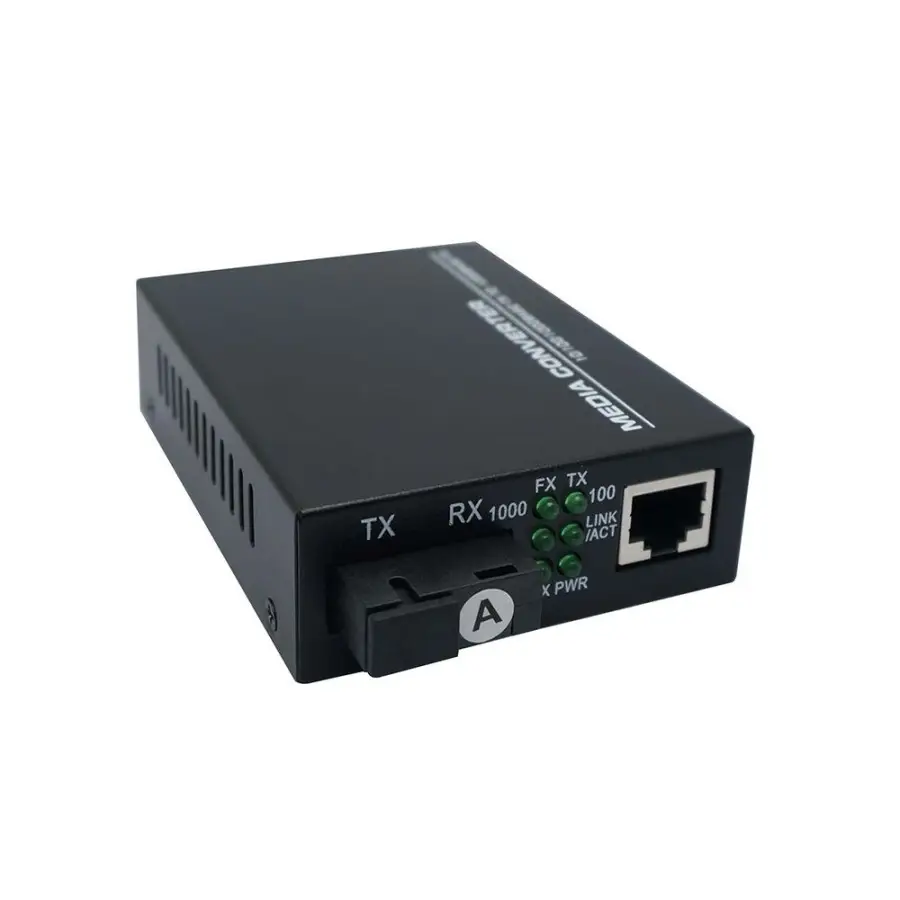

- LED indicators – power, link, activity, speed, duplex mode.
- MTBF over 50,000 hours – industrial-grade reliability.
Typical Applications
- Carrier and metropolitan fiber optic networks
- Interconnection of remote buildings and sites
- Enterprise and campus networks
- Video surveillance and IP camera systems
- Industrial, energy, and transport infrastructure
- Gigabit Ethernet extension without replacing active equipment
MCGE-T/R (Single Fiber) Model Comparison Table
| Model | Speed | Wavelength | Distance | Optical Port | Tx / Rx | Optical Budget |
|---|---|---|---|---|---|---|
| MCGE-3TR | 10/100/1000 Mbps | 1310 / 1550 nm | 3 km | Simplex SC | -9 ~ -3 dB / ≤ -17 dB | 22 dB |
| MCGE-20TR | 10/100/1000 Mbps | 1310 / 1550 nm | 20 km | Simplex SC | -9 ~ -3 dB / ≤ -23 dB | 22 dB |
| MCGE-40TR | 10/100/1000 Mbps | 1310 / 1550 nm | 40 km | Simplex SC | -5 ~ 0 dB / ≤ -23 dB | 23 dB |
| MCGE-80TR | 10/100/1000 Mbps | 1490 / 1550 nm | 80 km | Simplex SC | 0 ~ 2 dB / ≤ -25 dB | 25 dB |
| MCGE-100TR | 10/100/1000 Mbps | 1490 / 1550 nm | 100 km | Simplex SC | 2 ~ 6 dB / ≤ -30 dB | 28 dB |
| MCGE-120TR | 10/100/1000 Mbps | 1490 / 1550 nm | 120 km | Simplex SC | 2 ~ 6 dB / ≤ -30 dB | 28 dB |
General Technical Specifications
- Transmission speed: auto-negotiation 10/100/1000 Mbps
- Fiber type: single-mode, single fiber (WDM)
- Transmission mode: half / full duplex
- Ethernet interface: RJ45
- Optical interface: SC (optional FC / ST)
- BER: < 1×10⁻⁹

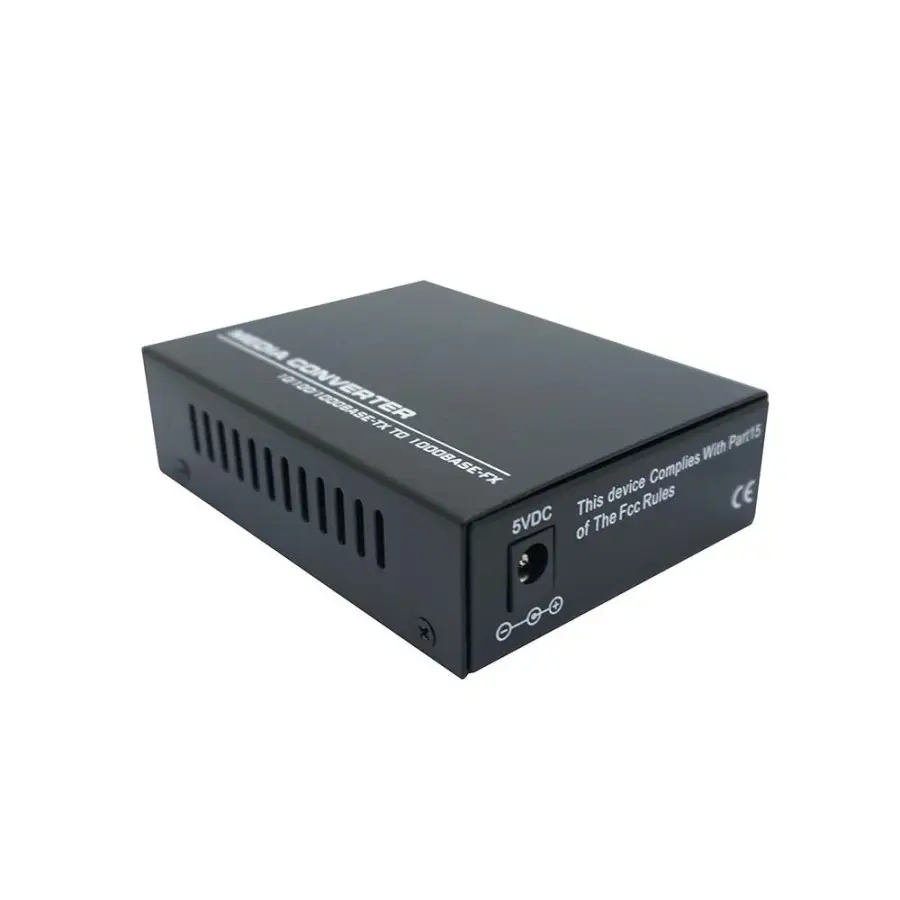

- Power supply: DC 5 V (external), AC 100–240 V or DC -48 V (optional)
- Power consumption: ≤ 2.5 W
- Operating temperature: 0…+50 °C (industrial version: -40…+85 °C)
- Humidity: 5–95% non-condensing
- Dimensions: 94 × 70.6 × 26.5 mm
- Weight: 0.38 kg
The MCGE-T/R series is an optimal solution for building reliable, scalable, and cost-effective Gigabit Ethernet links over long distances using a single optical fiber.
