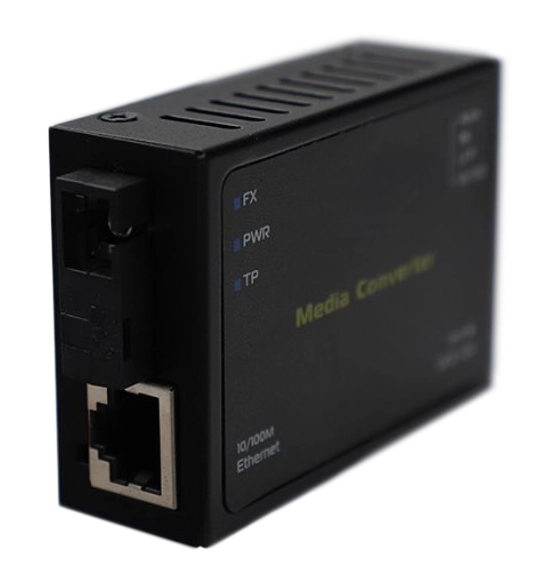

100M Mini WDM SC to 100Base-TX Media Converter (Unmanaged) CMCFE-SC
The CMCFE-SC series is a compact, self-adaptive Fast Ethernet 10/100M fiber optic transceiver equipped with one 100M optical port and one auto-negotiating 10/100Base-TX Ethernet RJ45 interface. The product design complies with Ethernet standards and includes lightning and electrostatic protection, a wide operating temperature range from -20°C to +70°C, and ensures stable and reliable operation. The device is widely used in harsh environments, can be easily embedded into equipment, and is ideal for applications with limited installation space. Reliable performance ensures stable data transmission.
Features:
- Optical transmission can be carried out over a single fiber, effectively doubling transmission capacity compared to dual-fiber solutions.
- Auto-negotiation allows the UTP port to automatically select 10 Mbps or 100 Mbps and full or half duplex mode.
- The UTP port supports automatic MDI / MDI-X crossover.
- Supports packet sizes up to 9000 bytes for management.
- Built-in lightning protection reduces damage caused by electromagnetic surges.
- The electrical port supports auto-negotiation to automatically adjust mode and transmission speed.
- Supports store-and-forward mode.
- Supports TCP/IP, PPPoE, DHCP, ICMP, and NAT protocols.
| Specifications | |
|---|---|
| Standards | IEEE 802.3u, 10/100Base-TX and 100Base-FX |
| MAC Address Table | 1K |
| Data Buffer | 1M |
| Interfaces | RJ-45 (10/100 Mbps); optical connector SC (100 Mbps) |
| Cable | UTP: Cat. 5 (up to 100 m) Single-mode fiber: 8.3/125, 8.7/125, 9/125, 10/125 µm (up to 90 km) |
| Flow Control | Full Duplex: IEEE 802.3x Half Duplex: backpressure |
| LED Indicators | Power, FX (fiber), TP (twisted pair) |
| Power Supply | DC 5~12 V |
| Operating Temperature | 0 ~ 70°C |
| Humidity | 5 ~ 90% |
| Dimensions | 69 × 50 × 24 mm |
| Detailed LED Indicators | PWR: power FX LINK/ACT: fiber link/activity TP: full/half duplex mode of network port TX LINK/ACT: electrical port link/activity 100: electrical port speed 100/10 Mbps FX: optical signal presence/absence |

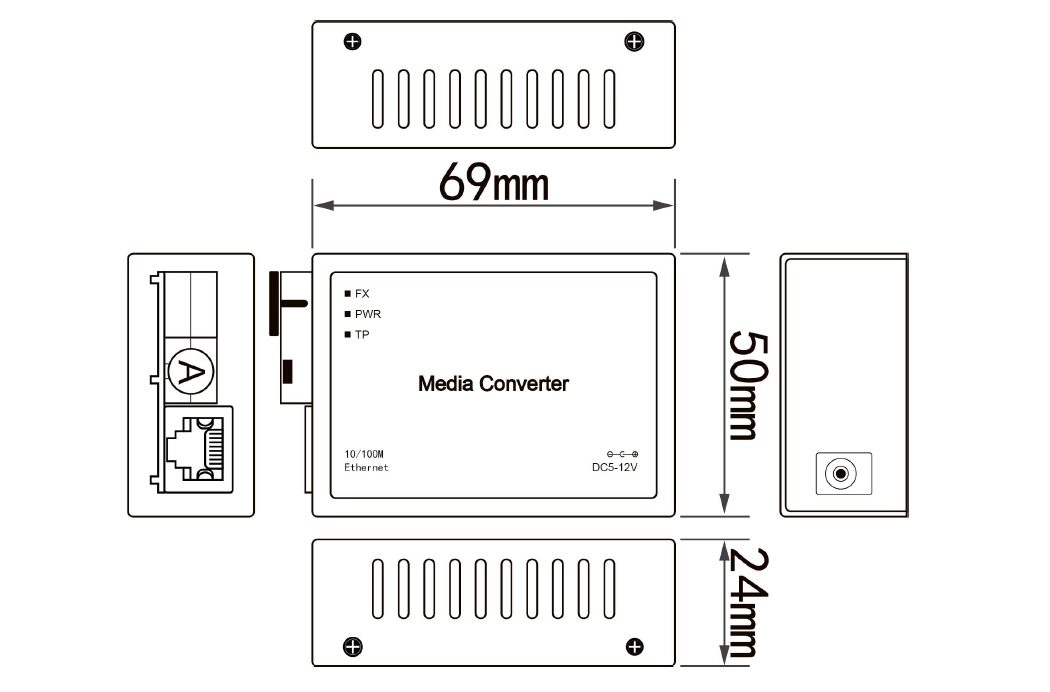

Dimensions:
