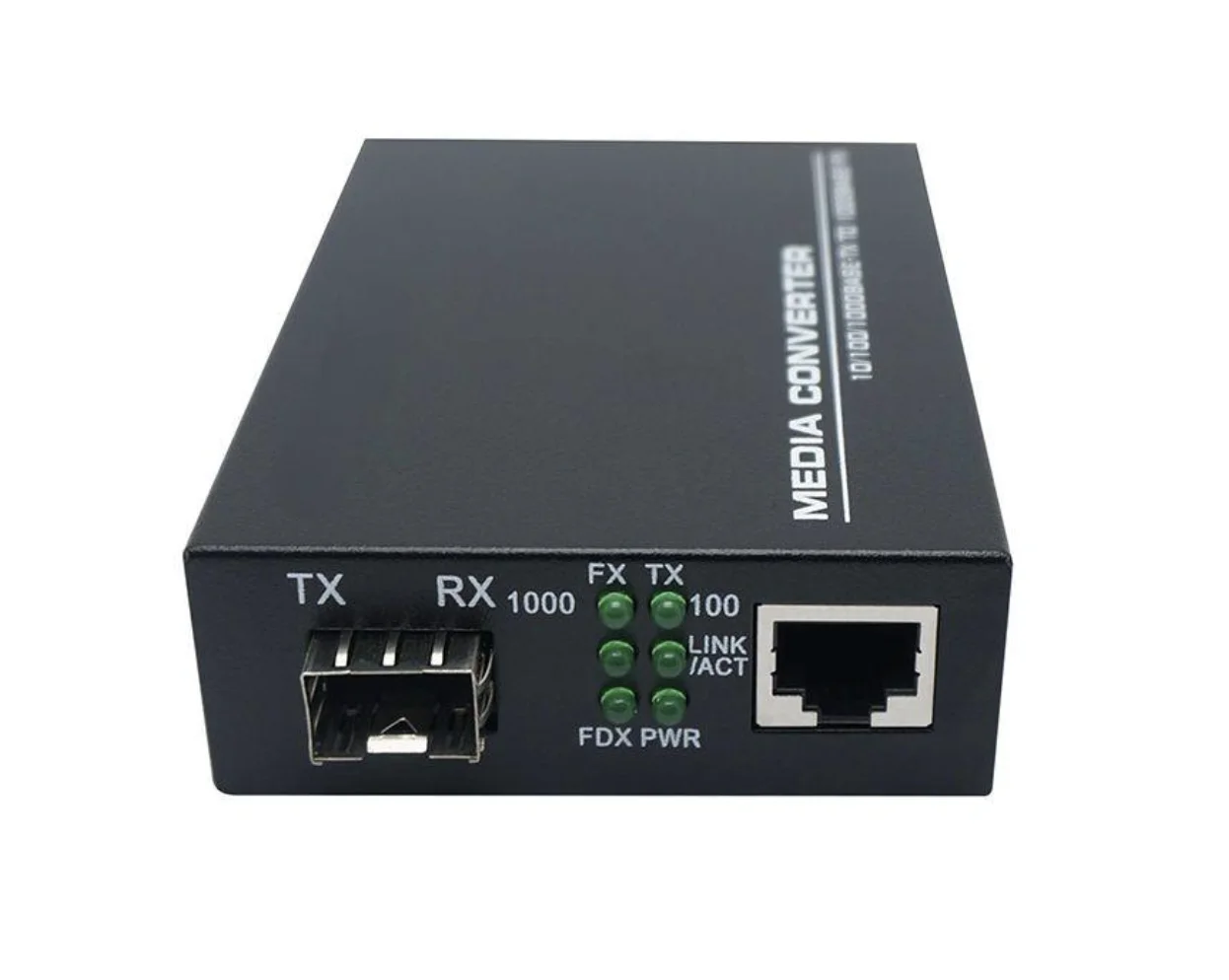

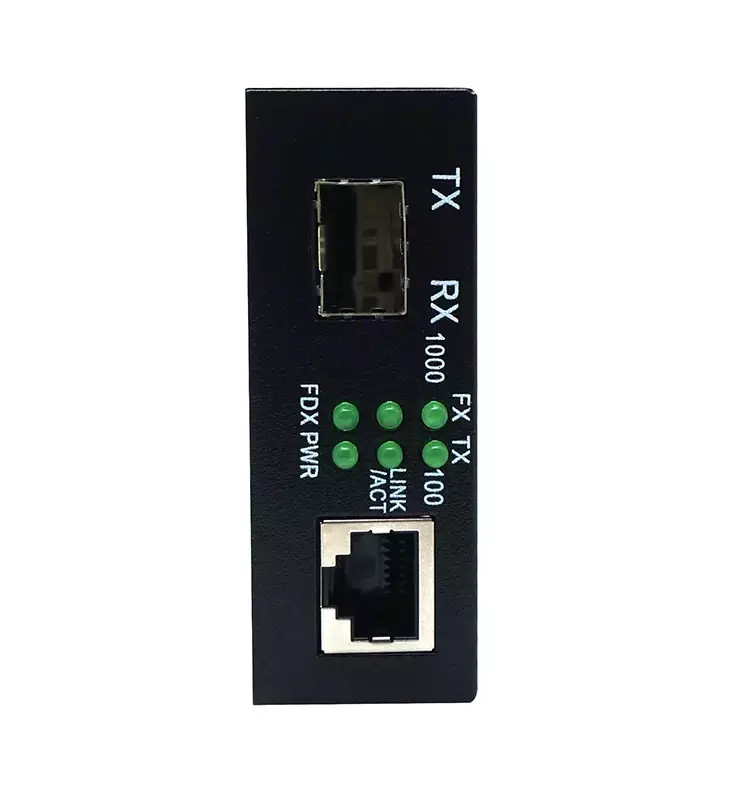

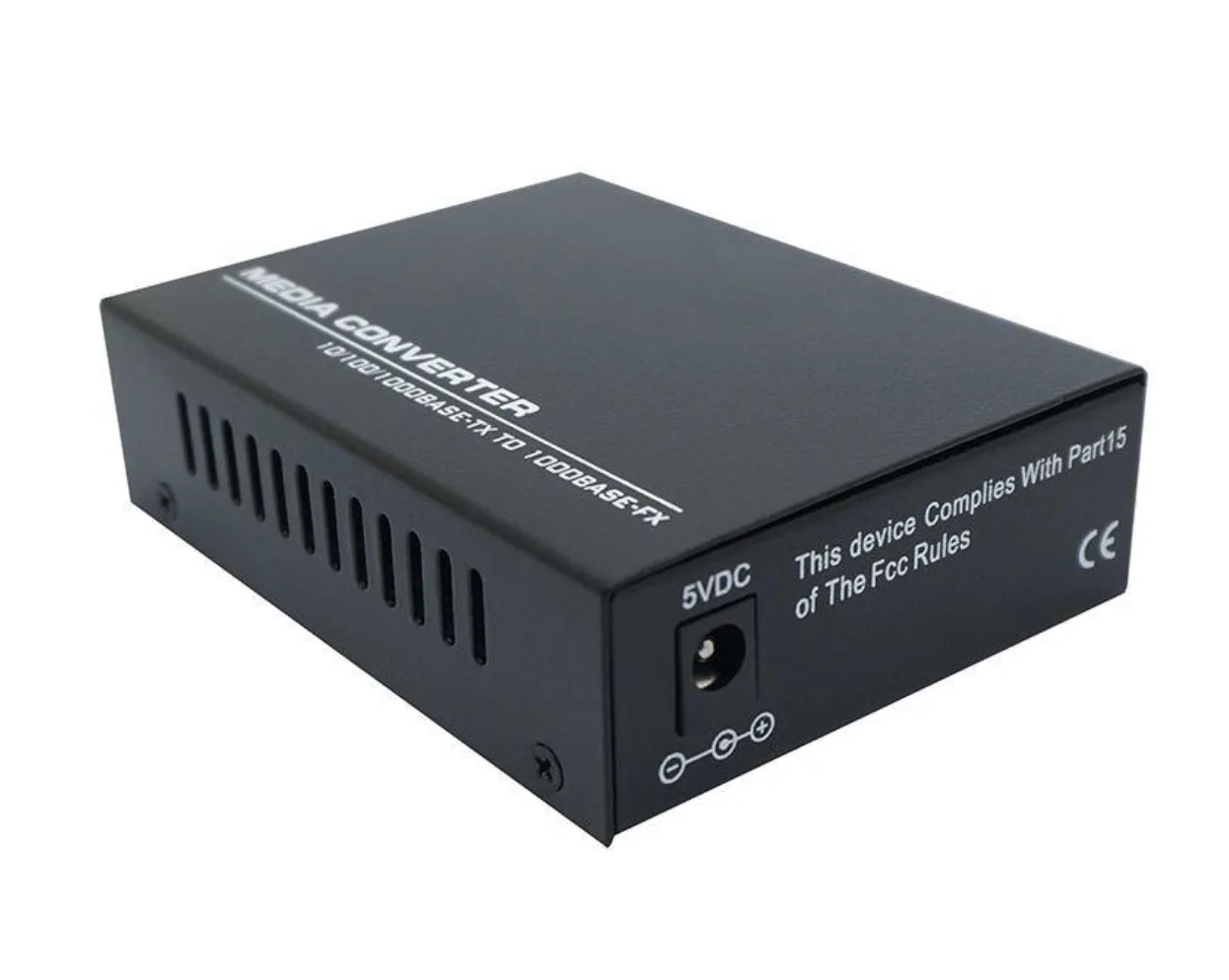

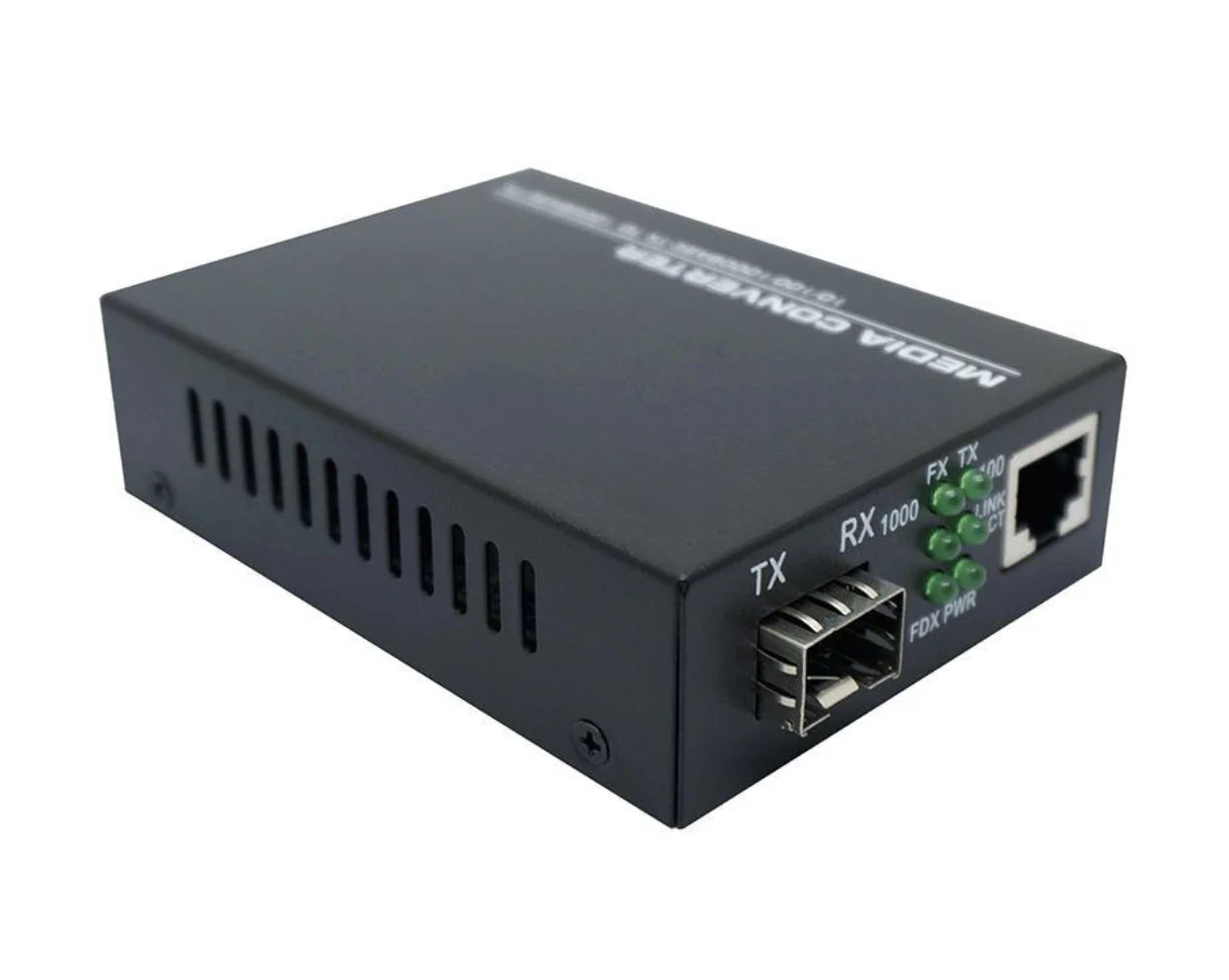

1G/100M SFP to 1000Base-TX Media Converter (Unmanaged) MCxx-SFP
SFP media converter — is a universal Ethernet media converter designed to convert signals between copper lines UTP (RJ45) and a fiber optic line via interchangeable SFP modules. The device is developed for mass deployment of Ethernet networks and allows efficient extension of the existing copper infrastructure up to a distance of 120 km using fiber optics.
Thanks to the use of standard SFP transceivers, the media converter easily adapts to different transmission speeds, fiber types, and link distances. The device can be used both as a standalone unit and installed into a 2U chassis with 14/16 slots, making it a convenient solution for operator, corporate, and industrial networks.
Key advantages
- Flexible SFP architecture — support for interchangeable SFP modules for Fast Ethernet and Gigabit Ethernet.
- IEEE standards compliance — IEEE 802.3, 802.3u, 802.3z, 802.3ab.
- Interfaces — 1×RJ45 (UTP) + 1×SFP slot.
- Plug and Play — easy installation without additional configuration.
- Auto-negotiation — support for Half Duplex / Full Duplex modes.
- Auto MDI/MDI-X — automatic detection of Ethernet connection type.
- Jumbo Frames support — from 64 to 9216 bytes (optional), for high-load networks.
- Scalability — conversion between different speeds and transmission media types.
- LED indicators — local monitoring of power, link, and activity.
- Convenient diagnostics — quick fault detection and simplified maintenance.
Series models
- MCFE-SFP — 10/100 Mbps, support for SFP modules up to 155 Mbps
- MCGE-SFP — 10/100/1000 Mbps, support for SFP modules 1.25 Gbps
Applications
- Extension of Ethernet connections up to 120 km
- Connection of remote buildings and sites (campuses, industrial areas)
- Operator and corporate fiber optic networks
- Video surveillance systems and IP cameras
- Intelligent Transport Systems (ITS) and Safe City
- Industrial networks with increased surge protection requirements
- Educational, multimedia, and television data transmission systems
Form factor and installation
- Standalone version
- Card-type version for installation into a 2U converter chassis (14/16 slots)
- Device dimensions: 94 × 70.6 × 26.5 mm
SFP media converter — is a reliable, scalable, and cost-effective solution for building modern Ethernet networks using fiber optic infrastructure.
Similar products
from 20,40 EUR
This media converter converts the Ethernet signal from vitapara cable to fiber optic cable, allowing for a significantly increased transmission range of up to 120 km. It is a cost-effective solution to ensure long-term data transmission without the need for costly network upgrades.
from 15,75 EUR
This media converter converts the Ethernet signal from vitapara cable to fiber optic cable, allowing for a significantly increased transmission range of up to 120 km. It is a cost-effective solution to ensure long-term data transmission without the need for costly network upgrades.
from 96,00 EUR

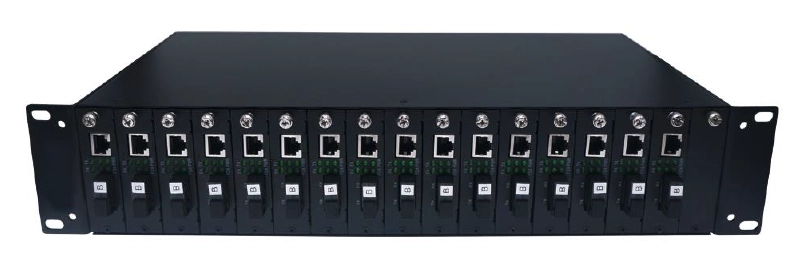

The 2U rack-mount chassis provides 14 or 16 slots for media converters, 14 slots for standalone media converters and 16 slots for media converter cards. It comes with a single AC or DC power input, with an optional redundant AC or DC power expansion module to enhance reliability.
from 16,50 EUR
This media converter converts an Ethernet signal from twisted-pair cable to fibre optic cable, enabling a significant increase in data transmission range up to 120 km. It is a cost-effective solution for ensuring long-term data transmission without the need for expensive network upgrades.
from 12,90 EUR
This media converter converts an Ethernet signal from twisted-pair cable to fibre optic cable, enabling a significant increase in data transmission range up to 120 km. It is a cost-effective solution for ensuring long-distance data transmission without the need for expensive network upgrades.

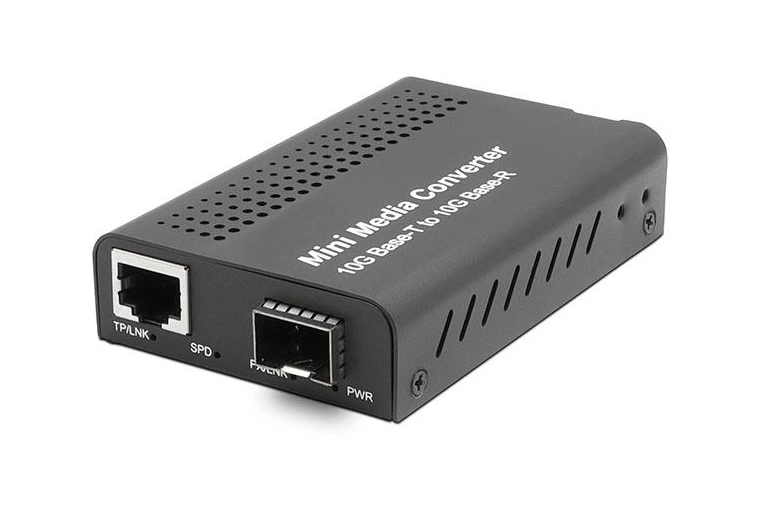

High-performance 10G media converter designed for modern high-speed networks and data centers. It ensures reliable optical-to-electrical signal conversion, stable transmission, and flexible deployment with support for multiple fiber types and WDM technology. An ideal solution for expanding bandwidth, upgrading infrastructure, and maintaining maximum network performance at an optimal cost.
Compact and reliable Fast Ethernet media converter designed for flexible deployment in space-limited environments. It ensures stable data transmission, supports auto-negotiation, and provides enhanced protection against electrical interference. An ideal solution for extending networks over fiber with minimal cost and maximum efficiency.

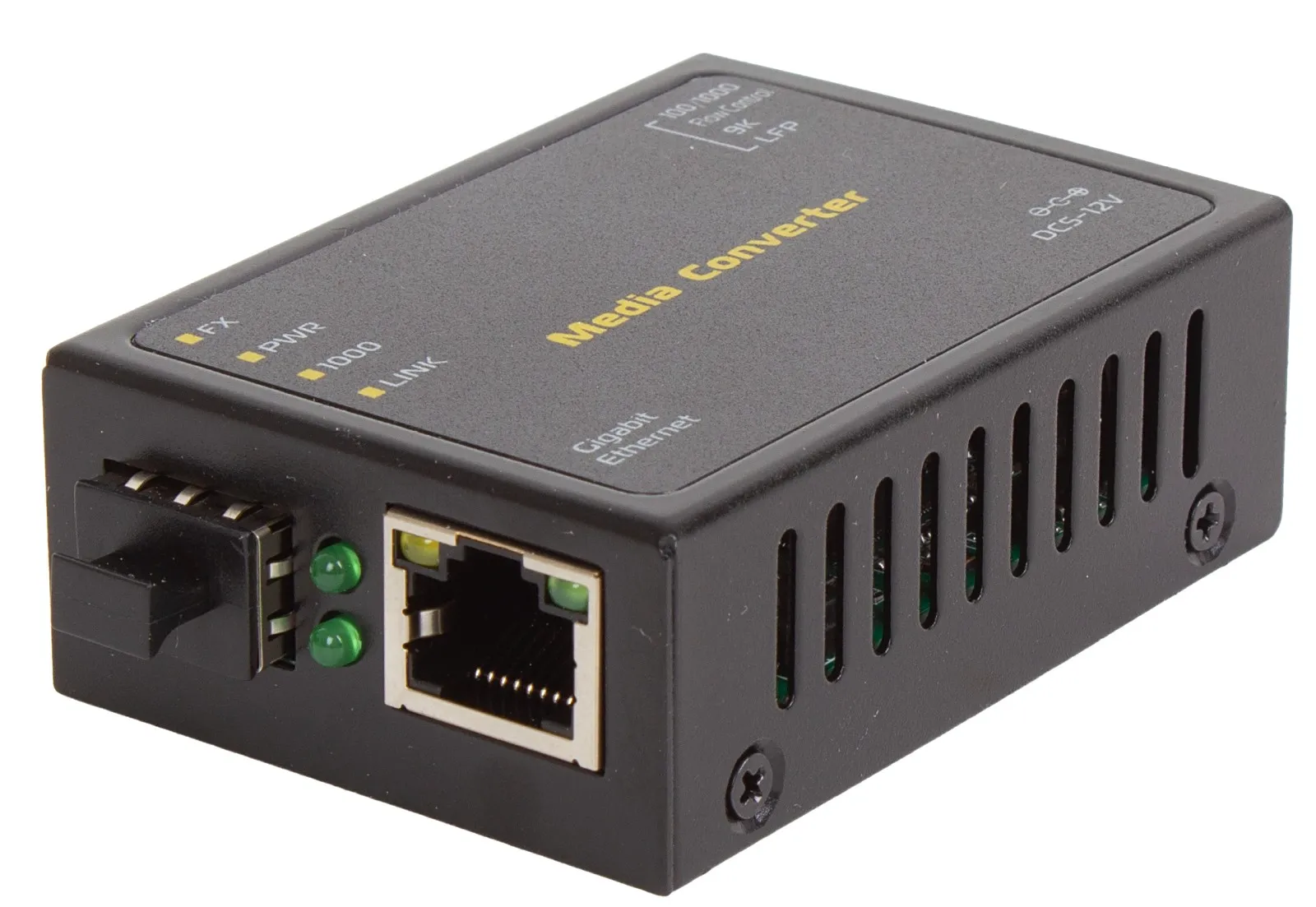

Compact Gigabit media converter with SFP support, designed for flexible and space-saving network deployment. It ensures stable high-speed data transmission, supports auto-negotiation, and provides reliable operation even in demanding environments.
