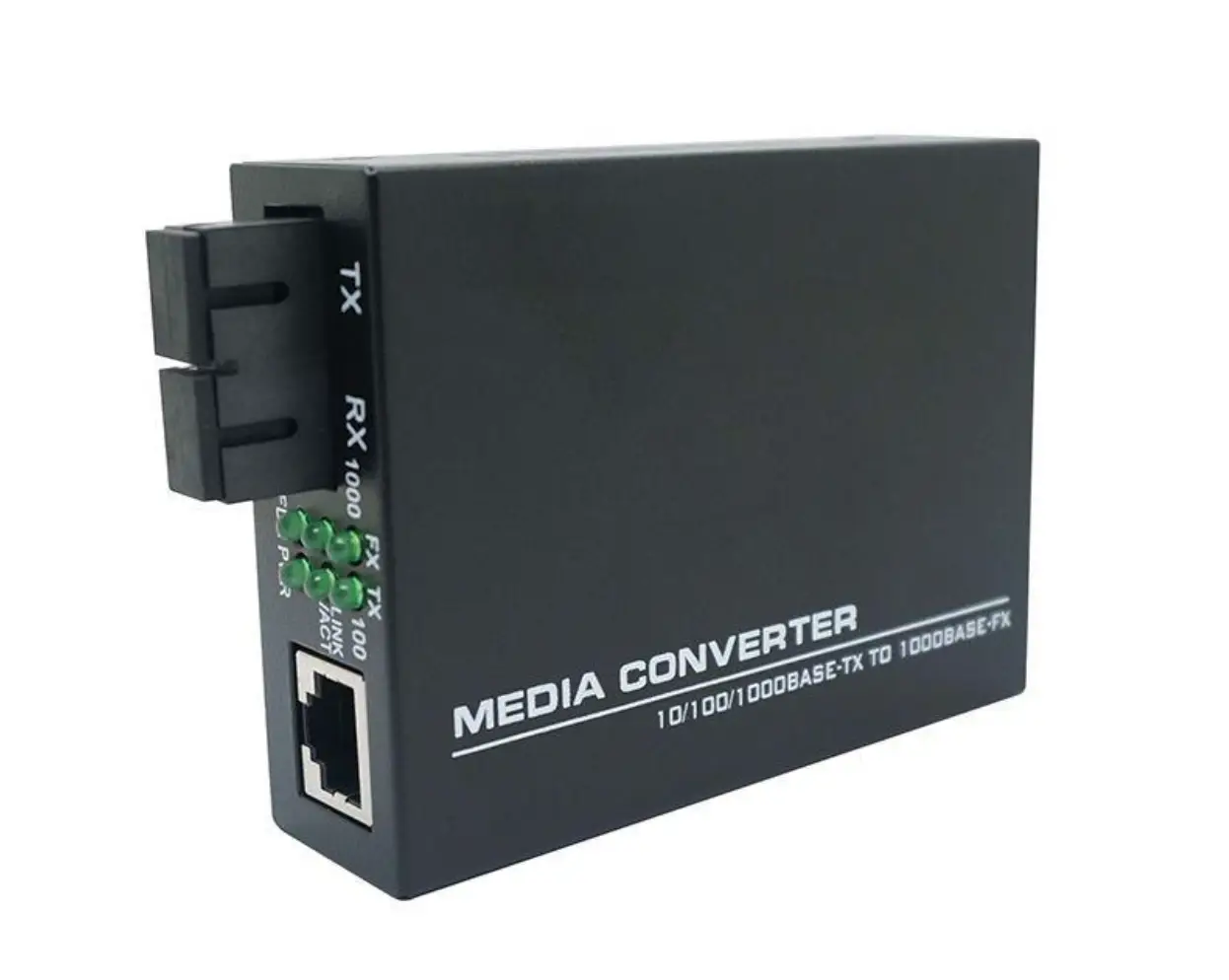

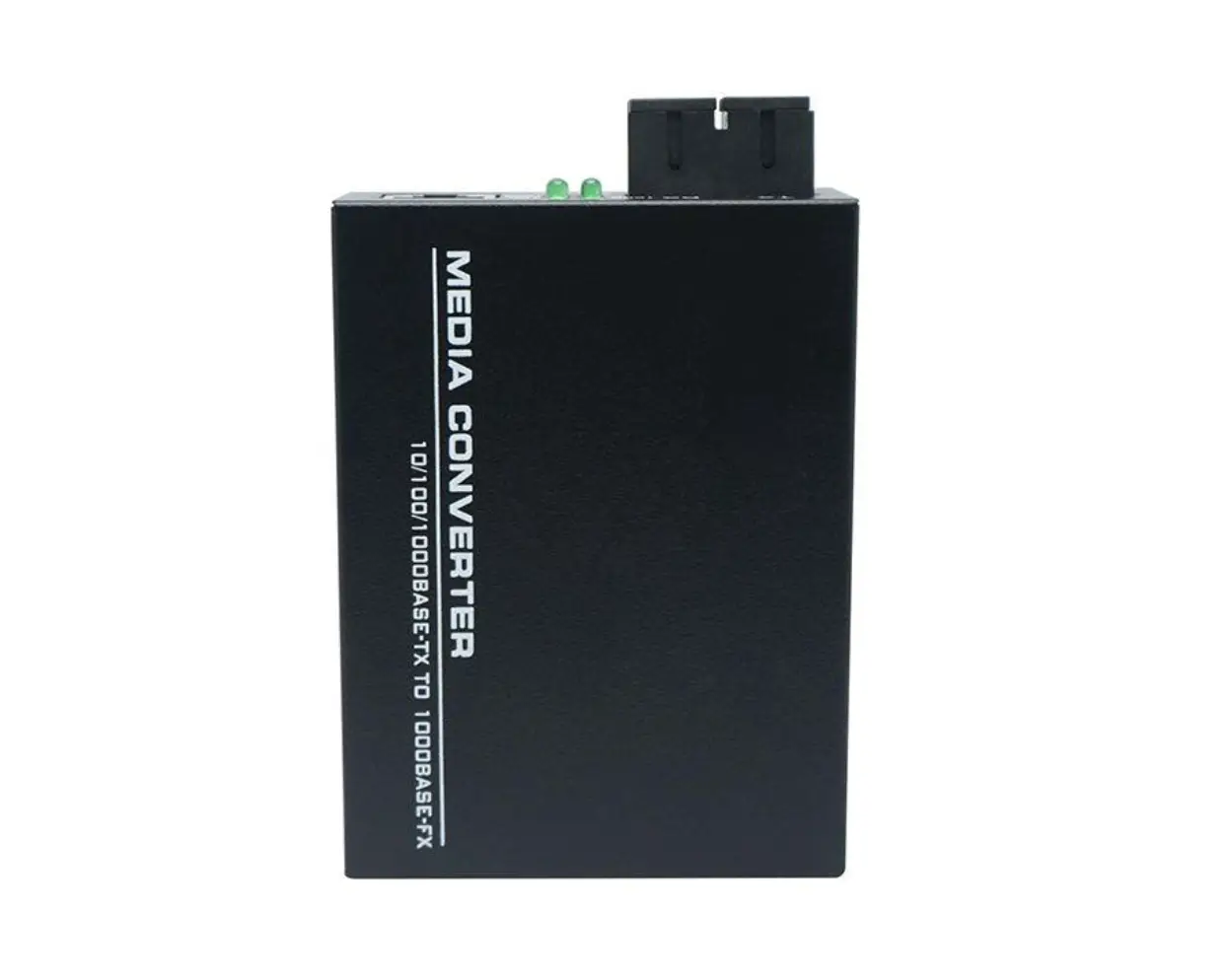

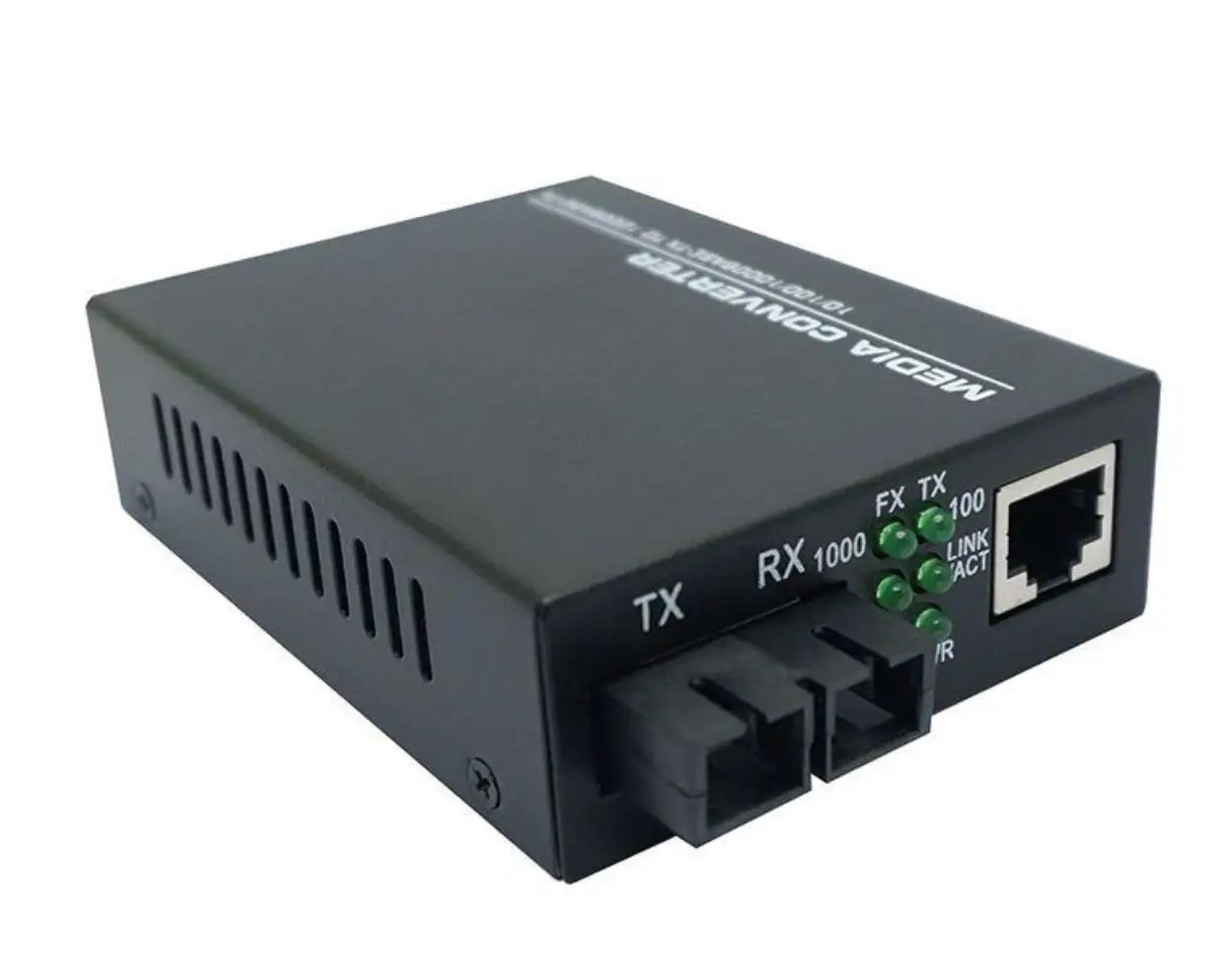

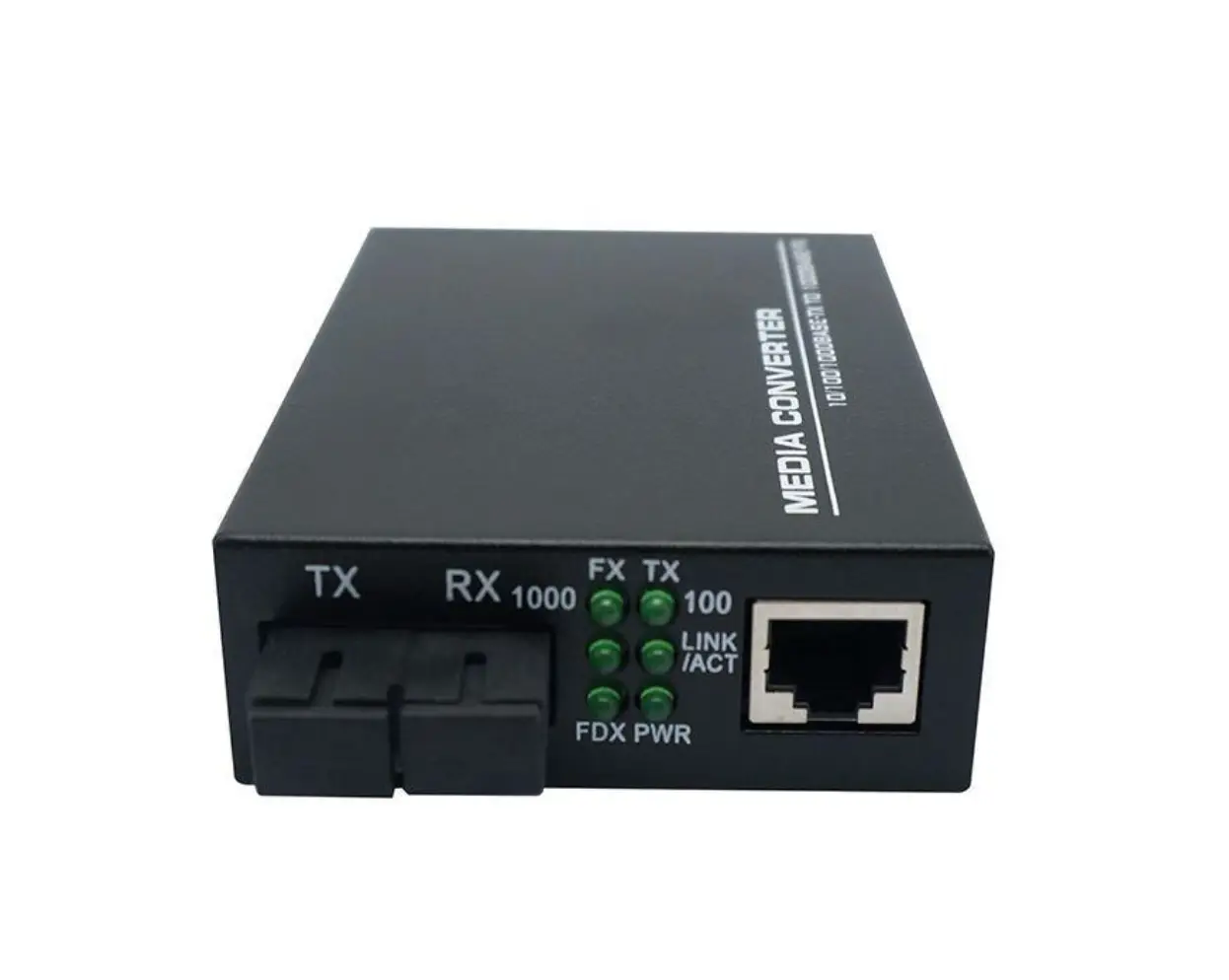

1G SC to 1000Base-TX Media Converter (Unmanaged) MCGE
The media converter transmits the Ethernet signal from the CAT cable to fiber optic, extending the transmission distance up to 120 km. This is a cost-effective solution for long-distance data transmission.
Features:
- Built-in 2MB buffer memory;
- Automatic negotiation and flow control for full duplex (IEEE802.3 X) and half duplex;
- Automatic MDI/MDI-X cross-line detection;
- High-performance memory bandwidth of 1.4 Gbps;
- LED display for power, link/activity, full/half duplex, 100M, 1000M;
- Support for packet forwarding up to 1600 bytes for management;
- Maximum transmission distance up to 120 km.
| Code | Data Transfer Rate | Wavelength | Range | Connector | Source | Power Tx | Sensitivity Rx |
|---|---|---|---|---|---|---|---|
| MCGE-055 | 10/100/1000 Mbps | 850 nm | 550 m | Duplex SC | VCSEL | -9~-3 dB | ≤-17 dB |
| MCGE-2 | 10/100/1000 Mbps | 1310 nm | 2 km | Duplex SC | FP | -9~-3 dB | ≤-23 dB |
| MCGE-20 | 10/100/1000 Mbps | 1310 nm | 25 km | Duplex SC | FP | -9~-3 dB | ≤-23 dB |
| MCGE-40 | 10/100/1000 Mbps | 1310 nm | 40 km | Duplex SC | DFB | -5~0 dB | ≤-34 dB |
| MCGE-80 | 10/100/1000 Mbps | 1550 nm | 80 km | Duplex SC | DFB | -2~3 dB | ≤-24 dB |
| MCGE-100 | 10/100/1000 Mbps | 1550 nm | 100 km | Duplex SC | DFB | 2~6 dB | ≤-30 dB |
| MCGE-120 | 10/100/1000 Mbps | 1550 nm | 120 km | Duplex SC | DFB | 2~6 dB | ≤-30 dB |
